Wholesale Hot Sale 20W Aluminum COB Led Track Lighting CE &lamp; ROHS

Name: Wholesale Hot Sale 20W Aluminum COB Led Track Lighting CE amplamp ROHS
Brand: EWIN
Price: 20.5 USD

Place of Origin : china

Brand Name : EWIN

Certification : CE ROHS

Model Number : EW-SCL-COB-20W

Light Source : LED

LED Light Source : cob chips

Warranty(Years) : 3

Input Voltage(V) : 100-277

Lamp Power(W) : 22

Lamp Luminous Flux(lm) : 1700-2000

Lamp Luminous Efficiency(lm/w) : 120

CRI (Ra>) : 82

Color Temperature(CCT) : Pure White

Working Temperature(℃) : -40 - 45

Working Lifetime(Hour) : 50000

Lamp Body Material : Aluminum

color of housing : white black aluminum

power factor : 0.90-0.98

power efficiency : 0.85

track adaptor : 2-way 3-way 4-way

SDCM : <4

Frequency range : 50-60Hz

beam angle : 30 or 50 degree

Item Type : Track Lights

MOQ : 10pcs

Price : 20.5-76.3

Packaging Details : Packaging Details: EPE Cotton protect; Box lamp:355*160*280mm; 6 pcs in one carton;:725*295*500mm; D

Delivery Time : usually 7-10 working days

Payment Terms : T/T, Western Union

Supply Ability : 5000PCS/Month

Contact Now

Wholesale Hot Sale 20W Aluminum COB Led Track Lighting CE &lamp; ROHS

Description	Brand options	Voltage	PF	CRI	Beam	Dimension mm	Netweight
10W LED COB Track light	Cree/Bridelux/ Citizen/Gosun	100-277vAC	>0.9	>82	30°/50°	80×95(lamp) 132 ×85 × 45(power box)	0.9kg
15W LED COB Track light	Cree/Bridelux/ Citizen/Gosun	100-277vAC	>0.9	>82	30°/50°	102×122(lamp) 132 ×85 × 45(power box)	1.20kg
20W LED COB Track light	Cree/Bridelux/ Citizen/Gosun	100-277vAC	>0.9	>82	30°/50°	102×122(lamp) 132 ×85 × 45(power box)	1.20kg
30W LED COB Track light	Cree/Bridelux/ Citizen/Gosun	100-277vAC	>0.9	>82	30°/50°	122×137(lamp) 178 ×125 × 60(power box)	1.75kg
40W LED COB Track light	Cree/Bridelux/ Citizen/Gosun	100-277vAC	>0.9	>82	30°/50°	Φ122 ×130mm	1.70kg

1. Product features

LED power	20W
Lamp consumption	22W
Output	2200-2500lm
Beam angle	30° /50°
Input voltage	100-277vAC
Frequency Range	50-60HZ
CRI	>82
Working Temperature	-45°C-65°C
Storage Temperature	-25°C-65°C
Color of Frame	white/black/silver
Lifespan	50000hrs
Certificate	CE/ROHS/ERP/SASO/GS

2. COB parameter

PCB	Ceramic
Chip size	14*28mil
Output	2600-3000lm
Chip Qty	300pcs
CRI	>82
Voltage	30-33vDC
Current	500mA(Max 1320mA)
Brand options	Gosun/Cree/bridgelux/Citizen

3. Driver parameter

Brand options	Lifud/Meanwell/EAGLERIES/PHILIPS/TRIDONIC
Input	100-270vAC
Output	27-42vDC,350mA
Power Factor	0.9-0.99
Power Efficiency	86%
Certificate	CE/TUV/UL/SAA/PSE/CB/CQC
Dimmable	Triac /Dali/WI-FI available

4.Data Sheet

Part No.	Color	CCT	Output
EW-SCL-COB-20W-WW	Warm White	2900K-3200K	2200-2300lm
EW-SCL-COB-20W-NW	Natural white	3900K-4200K	2300-2400lm
EW-SCL-COB-20W-CW	Cool White	5900K-6200K	2400-2500lm

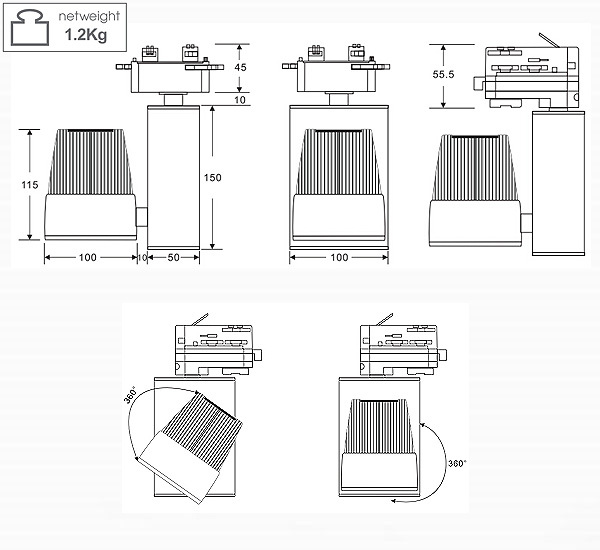

Dimension

Wholesale Hot Sale 20W Aluminum COB Led Track Lighting CE &lamp; ROHS

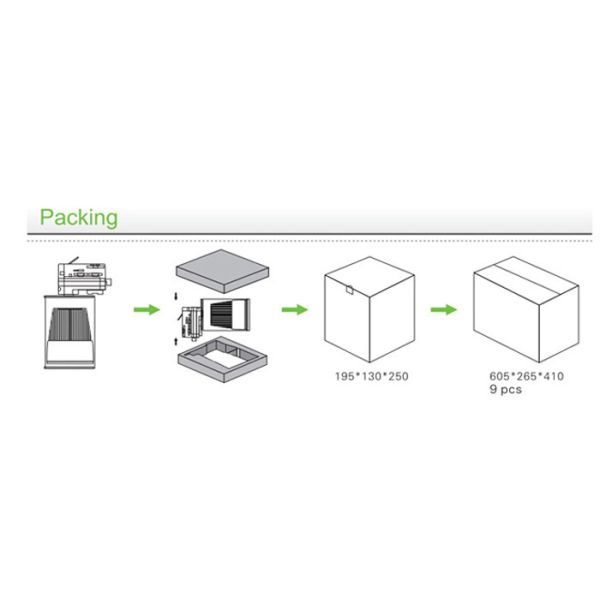

Packaging

Wholesale Hot Sale 20W Aluminum COB Led Track Lighting CE &lamp; ROHS

Packing:

Wholesale Hot Sale 20W Aluminum COB Led Track Lighting CE &lamp; ROHS

More Pictures:

Wholesale Hot Sale 20W Aluminum COB Led Track Lighting CE &lamp; ROHS

Wholesale Hot Sale 20W Aluminum COB Led Track Lighting CE &lamp; ROHS Images
